Power Supply PCB means that the PCB is applied to the power supply produc, such as power bank, switching power supply and so on. It is usually with heavy copper thickness (2oz, 3oz or heavier).
The circuit board includes many types of working layers, such as the signal layer, protection layer, Silkscreen layer and inner layer, etc. The functions of various layers are briefly introduced as follows:
1. Signal layer: mainly used to place components or wiring.
2. Protection layer: mainly used to ensure that the circuit board does not need to be tin-coated, to ensure the reliability of the circuit board operation.
3. Silkscreen layer: mainly used in the printed circuit board components on the serial number, production number and company name.
4. Inner layer: mainly used as signal wiring layer
5. Other layers: mainly includes four types of layers as following:
Drill Guide (Drill orifice layer) : used primarily for Drill positions on printed circuit boards.
Keep-out Layer: mainly used to draw the electrical frame of the circuit board.
Payment & Shipping Terms:
|Material:||FR-4 KB6160||Layers:||2 Layers|
|Surface:||HASL||Standard Testing:||IPC Class 2|
power supply circuit board,
high frequency pcb

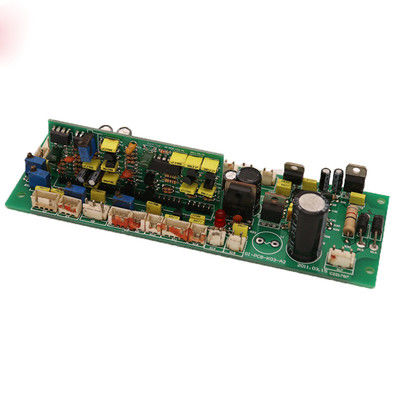

FR-4 KB6160 1.6mm Board With Red Gum 1oz Copper Driving Power Supply PCB
|Soldmask & Silkscreen||Green & White|
|Quality Standard||IPC Class 2, 100% E-testing|
|Certificates||TS16949, ISO9001, UL, RoHS|
What KAZ Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
|Capacity||Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
|Min Line Width/Gap||4/4 mil (1mil=0.0254mm)|
|Material||FR-4, Aluminum, PI|
|Max PCB Size||600*1200mm|
|Min Hole Size||0.2mm (+/- 0.025)|
|Surface Treatment||HASL, ENIG, OSP|

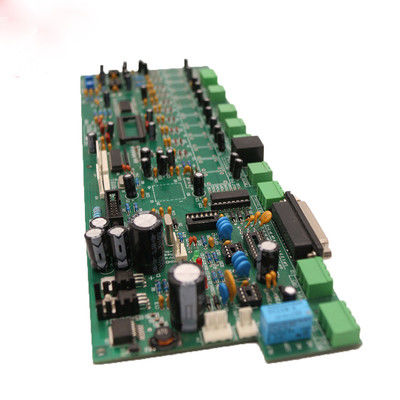

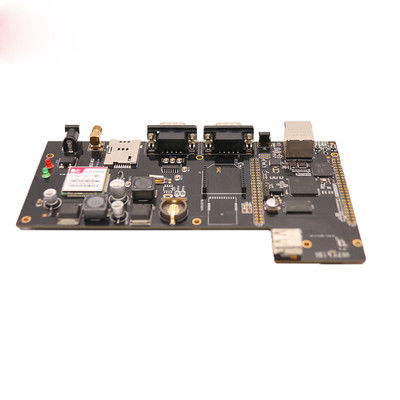

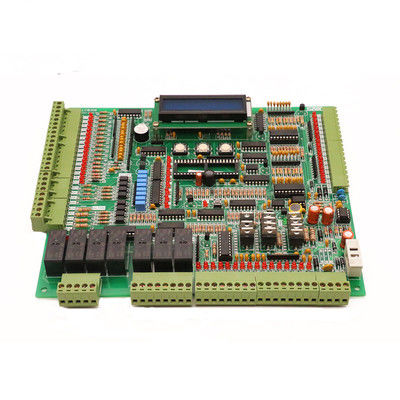

More photoes of FR-4 KB6160 1.6mm Board With Red Gum 1oz Copper Driving Power Supply PCB
