HDI PCB is the shortened form of High Density Interconnector PCB. It's a technology of printed circuit board production.
It uses the micro blind & buried vias technology with high density circuits layout on the PCB board. It's a compact PCB that is designed for small volume users. It uses the design of modular paralle capacity of 1000VA, say height of 1u, natural cooling down, and it can be placed into the rack of 19" directly, the max parallel that can be connected in is up to 6 modules. This special products uses all digital signal processing (DSP) technology and multiple patented technology, it has the ful range of adaptability to load capacity and strong short-term overload capacity, and can ignore the factor of load power and crest.
Advantages of HDI PCB can be small size, high frequency and high speed. Mainly used for PC, cellphones and digital cameras...
Product Details:
Payment & Shipping Terms:
|
| Layers: | 6 | Material: | FR-4 |
|---|---|---|---|
| Board Thickness: | 1.6mm | Soldmask: | Blue |
| Surface Treatment: | Immersion Gold | Others: | Gold Finger 10u" |
| High Light: | blind via pcb,hdi pcb |
||
This is a PCB with 6 layers Rigid FR4 PCB with ENIG surface and hard plating gold finger 10u"
Detials for this 6 layers Rigid FR4 PCB with ENIG surface and hard plating gold finger 10u"
PCB size: 205*160mm, IPC Class 2 quality standard

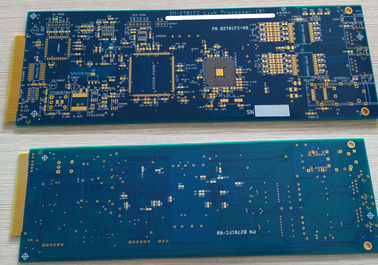

More photoes for this 6 layers Rigid FR4 PCB with ENIG surface and hard plating gold finger 10u"
