A printed circuit board is an important electronic component, a support for electronic components, and a carrier for electrical connection of electronic components. Because it is made by electronic printing, it is called a "printing" circuit board.
|Material||FR4; Megtron; Arlon; Nelco|
|Soldermask||Black; Red; Green;White|
Opening ------ Inner layer ----- lamination----drilling---sinking copper----line--- diagram electric----etching-----resistance welding ---character----spray tin (or immersion gold)-锣 edge-v cut (part of the PCB is not needed)-----fly test----vacuum packaging
PCBs are becoming more widely used because they have many unique advantages, as outlined below.
Can be high density. For decades, the high density of printed boards has grown with the integration of integrated circuits and advances in mounting technology.
1.High reliability. Through a series of inspections, tests and aging tests, the PCB can be reliably operated for a long period of time (usually 20 years).
Designability. For the various performances of PCB (electrical, physical, chemical, mechanical, etc.), the design of printed boards can be realized through design standardization and standardization, with short time and high efficiency.
2.Productivity. With modern management, it can standardize, scale (quantify), automate and other production, and ensure product quality consistency.
3.Testability. Established relatively complete test methods, test standards, various test equipment and instruments to detect and identify PCB product qualification and service life.
4. Assemblyability. PCB products not only facilitate the standardized assembly of various components, but also can be automated, large-scale mass production. At the same time, the PCB and various component assembly components can be assembled to form larger components and systems up to the complete machine.
5. Maintainability. Since PCB products and various component assembly components are produced in a standardized design and scale, these components are also standardized. Therefore, once the system fails, it can be replaced quickly, conveniently and flexibly, and the system can be quickly restored. Of course, you can say more about it. Such as miniaturization and weight reduction of the system, high-speed signal transmission, and the like.
Payment & Shipping Terms:
|Copper Thickness:||2/2/2/2OZ||Board Thickness:||1.6MM|
electronics circuit board,
rigid flex circuit board
1. Introduction of HDI FR-4 Green Soldermask White Silkscreen Electronic PCB with Immersion Gold
|Plugging Vias Capability||0.2-0.8mm|
|Min Annular Ring||4mil|
|Max Copper thickness||12OZ|
|Min Soldermask Bridge||0.08mm|
|Bare Board Test||Flying Probe|
2. Brief introduction about Shenzhen KAZ Circuit Co,. Ltd.
KAZ Circuit Co., Ltd works as a PCB and PCBA custom-made producer, manufacturing high precision single, double-sided, multilayer printed circuit board and metal substrate circuit board.
We manufacture pcb produsts depending on what you need and the gerber files you offered.
What we can do for you
We are a custom-made PCB/PCBA manufacturer with:
1. Prompt delivery: 2L: 3-5days; 4L: 5-7days
2. Expedited service: 1-2days
3. NDA can be signed for any file confidential.
4.Some companies that we establish business with

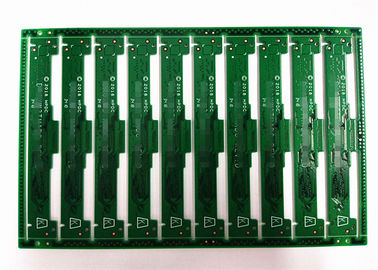

3. More pictures of HDI FR-4 Green Soldermask White Silkscreen Electronic PCB with Immersion Gold
