HDI PCB is the shortened form of High Density Interconnector PCB. It's a technology of printed circuit board production.
It uses the micro blind & buried vias technology with high density circuits layout on the PCB board. It's a compact PCB that is designed for small volume users. It uses the design of modular paralle capacity of 1000VA, say height of 1u, natural cooling down, and it can be placed into the rack of 19" directly, the max parallel that can be connected in is up to 6 modules. This special products uses all digital signal processing (DSP) technology and multiple patented technology, it has the ful range of adaptability to load capacity and strong short-term overload capacity, and can ignore the factor of load power and crest.
Advantages of HDI PCB can be small size, high frequency and high speed. Mainly used for PC, cellphones and digital cameras...
Product Details:
Payment & Shipping Terms:
|
| Material: | HDI Printed Circuit Board | Board Thickness: | 1.6MM |
|---|---|---|---|
| Soldermask: | Green | Silkscreen: | White |
| High Light: | blind via pcb,hdi pcb |
||
1. Introduction of HDI FR4 Green Soldermask Printed Circuit Board with Immersion Gold
| Categary | PCB |
| Plugging Vias Capability | 0.2-0.8mm |
| Max Circuit Range | 1 – 2 sided 600 x 1000mm, Multilayer 600 x 600mm |
| Max Copper thickness | 12OZ |
| Min Line WidthGap | 3.54mil |
| Bare Board Test | Flying Probe |
| Plugging Vias Capability | 0.2-0.8mm |
| Solder Mask | Blue,White,Red,Green |
2. Brief introduction about Shenzhen KAZ Circuit Co,. Ltd.
Brief introduction
As a PCB and PCBA custom-made producer, KAZ Circuit Co., Ltd manufactures high precision single, double-sided, multilayer printed circuit board and metal substrate circuit board.
We manufacture pcb produsts depending on what you need and the gerber files you offered.
What we can do for you
1. The services we offer:
| Layer |
Lead Time (Expedited service) |
Lead Time (Sample) |
| 2L | 24h | 3-4days |
| 4L | 36h | 5-7days |
| 6L | 72h | 8-10days |
|
Notes |
Min drill hole: 0.2mm Min Laser hole: 0.1mm Min track width/space: 4/4mil |
|
|
Application |
Industry Control, Communication, Security, LED lighting, Digital, Smart products ect. | |
|
Projects |
HDI Board, Gold Finger, High Frequency Board, Blind/buried multilayer board, SMT/DIP ect. | |
1. The customers we establish business relationship with:

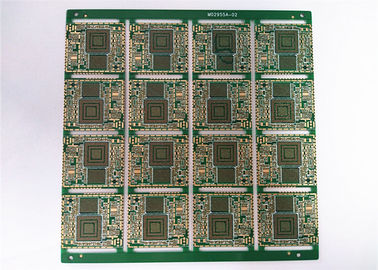

3. More pictures of HDI FR4 Green Soldermask Printed Circuit Board with Immersion Gold
May I know if there is any project requiring pcb or pcba products?
