Custom PCB Assembly

  • High Precision Custom PCB Assembly suppliers

Custom PCB Assembly.



1. Introduction



We produce full assembly PCB circuit boards according to customer's design (Gerber File & BOM list). Including PCB production, component sourcing, and SMT/DIP.



We has state-of-the-art assembly plants that allow us to follow your project through every step of the assembly process. We handle all types of pcb assembly, from basic thru hole PCB assembly to standard surface mount PCB assembly to ultra-fine pitch BGA assembly. Our engineers work with customers from across all fields including telecommunications, aviation, consumer electronics, wireless, medial, automotive and instrumentation.





2. Capavity



SMT Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
Press-fit Press range:0-50KN
Max. PCB size:800X600mm
Testing ICT,Probe flying,burn-in,function test,temperature cycling

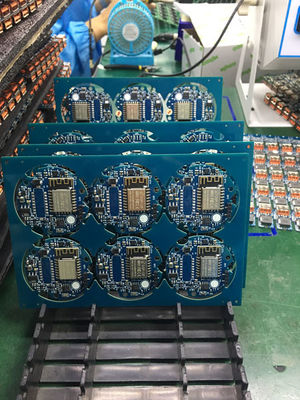

Network LF HASL FR4 Laminate 4 Layers PCB 3oz Copper

Network LF HASL FR4 Laminate 4 Layers PCB 3oz Copper
Network LF HASL FR4 Laminate 4 Layers PCB 3oz Copper

Large Image :  Network LF HASL FR4 Laminate 4 Layers PCB 3oz Copper

Product Details:

Place of Origin: Shenzhen China
Brand Name: Dimo
Certification: IATF16949-2016 | ISO9001 2015 | UL 337072 | ROHS
Model Number: NETWORK-PCBA-J-008

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Vacuum bag&Anti-static bag
Delivery Time: 8-15days
Payment Terms: T/T; L/C;Paypal
Supply Ability: 100000pcs/month
Detailed Product Description
PCB Material: FR4 Spec: As Per Customer Gerber Files
Layers: 4Layers Board Thickness: 0.8-1.6mm
Surface Finish: LF HASL Quality Standard: IPC Class 2
High Light:

FR4 Laminate 4 Layers PCB

,

LF HASL 4 Layers PCB

,

3oz Copper Pcb Prototype Board

NETWORK MOBILE ACCESS CONTROL SYSTEM PCBA Assembly
Layer: 2-6Layers
Materials: FR4 laminate, RoHS Directive-compliant
PCB thickness: 0.8-1.6mm
Final copper: 1-3oz
Min hole: 0.2mm
Min line width/space: 4/4 mil

Solder masks: Blue
Legend: White

Surface: OSP/HAL lead-free/immersion gold/immersion tin/immersion silver
Outline: rout and score/V-cut
E-test: 100%
Inspection standard: IPC-A-600H/IPC-6012B, class 2/3
Outgoing reports: final Inspection, E-test, solderability test, micro section
Certifications: IATF16949-2016 | ISO9001 2015 | UL 337072 | ROHS

Pictures:

Network LF HASL FR4 Laminate 4 Layers PCB 3oz Copper    Network LF HASL FR4 Laminate 4 Layers PCB 3oz Copper

What KAZ Circuit can do for you:

  • PCB fabrication (prototype, small to medium, mass production)
  • Components Sourcing
  • PCB Assembly/SMT/DIP
  • Box Building and Testing

To get a full quotation of the PCB/PCBA, pls provide the information as below:

  • Gerber File, with detail basic specification of the PCB(such as board materials,board thickness,surface treatment,finish copper thickness and etc.)
  • BOM List (Better in excel format)
  • Photos of the PCBA (If you have produce this PCBA before)
