Prototype PCB Assembly

  • High Precision Prototype PCB Assembly suppliers

Prototype PCB Assembly refers to making a small number of samples according to the circuit design or prototype before mass production to verify the correctness of the circuit design and the manufacturability of the product.



Prototype PCB Assembly plays a vital role in the product development process. First, it can help engineers find and correct potential problems in the design before actual production, thereby avoiding problems in mass production and saving costs and time. Secondly, proofing can also be used to test the performance and function of the product to ensure that the product can meet the design requirements. Finally, through Prototype PCB Assembly, manufacturers can build a bridge of communication with designers and customers to ensure that the final product can meet market demand.



Prototype PCB Assembly process



Circuit design: First, a complete circuit design drawing is required, which is the basis for Prototype PCB Assembly.



Material preparation: According to the circuit design drawing, prepare the required electronic components, printed circuit boards (PCBs) and other materials.



SMT patch: Use SMT (surface mount technology) to accurately mount electronic components on the PCB.



Welding and assembly: Complete the welding of electronic components and perform necessary assembly.



Functional test: Perform functional test on the PCBA board to ensure that it works properly.



Feedback and correction: Provide feedback based on the test results and correct problems in the design or production process.



Notes on Prototype PCB Assembly:



Design review: Before proofing, be sure to conduct a comprehensive review of the circuit design to ensure the correctness of the design.



Material selection: The selection of electronic components is crucial to the performance and stability of the product, so it is necessary to carefully select material suppliers.



Production process: The SMT patch process requires precise control to ensure that electronic components can be accurately mounted on the PCB.



Testing and verification: Perform comprehensive testing and verification on the sampled products to ensure that their performance and quality meet expectations.

6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen

6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen
6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen 6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen 6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen 6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen

Large Image :  6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen

Product Details:

Place of Origin: China
Brand Name: KAZ
Certification: UL/ROHS/ ISO9001
Model Number: KAZA-068

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Packaging Details: P/P
Delivery Time: 2 - 3 weeks
Payment Terms: Western Union, T/T, L/C, D/P, MoneyGram
Supply Ability: 100000 pieces
Detailed Product Description
Product Name: PCBA Place Of Origin: Guangdong , China
Min. Line Spacing: 3 Mil (0.075 Mm) Min. Hole Size: 3mil (0.075mm)
Suface: HASL LF Components Purchasing: OK
SMT DIP Assembly: Support Type: SMT Assembly
Highlight:

Black Soldmask Prototype PCB Assembly

,

Prototype PCB Assembly White Silkscreen

,

HASL LF PCB Assembly Manufacturer

4 Layers Black Soldmask White Silkscreen Prototype PCB Assembly manufacturer







1. Features of acquisition module circuit board







1. One Stop OEM Service, Made in Shenzhen of China

2. Manufactured by Gerber File and BOM List from Customer

3. FR4 Material, Meet 94V0 standard

4. SMT, DIP technology suport

5. Lead Free HASL, Environmental Protection

6. UL, CE, ROHS Compliant

7. Shipping By DHL,UPS, TNT, EMS or Customer requirement







2. module circuit board Technical capability









SMT Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
Press-fit Press range:0-50KN
Max. PCB size:800X600mm
Testing ICT,Probe flying,burn-in,function test,temperature cycling

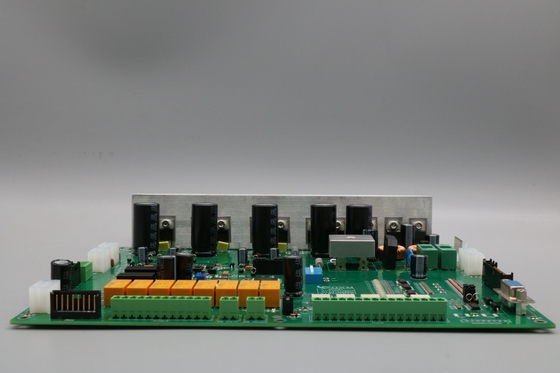

2. PCBA Pictures







6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen6 Layers Prototype PCB Assembly Manufacturer Black Soldmask White Silkscreen
