What it is：

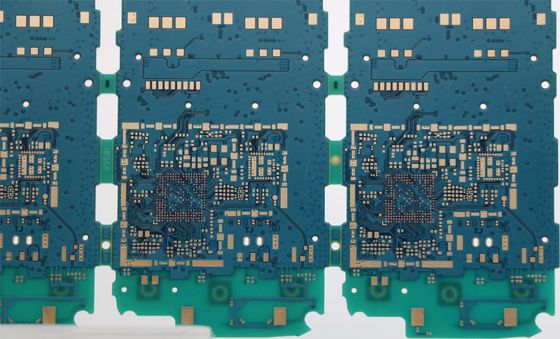

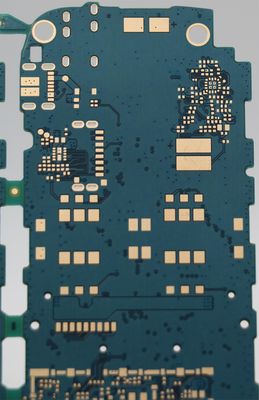

Any PCB Board with more than 2 layers can be called Multilayer PCB Board .
Multilayer PCB Board includes multi-layer etch layers and medium layers between each two etch layers.The medium layer can be very thin. There are at least three conductive layer in a multilayer circuit board , two of which are outlayers, while the remaining one is synthesized inside the insulation board.
The electrical connection between them is usually achieved through the plating hole in the cross section of the circuit board.
Classify: Multilayer rigid board, multilayer flexible board and multilayer rigid-flex board.
Why we need it:
Cause the increased concentration of integrated circuit package leading to a high concentration of interconnect lines, It makes it necessory to use the multiple substrates.
Unpredictable design issues such as noise, stray capacitance, crosstalk, etc. occur in the layout of the PCB. Therefore, the design of PCB must focus on minimizing the length of the signal line and avoiding parallel paths.
Obviously, due to the limited number of crossovers that can be achieved in a single-side, even in a double-side board, these requirements cannot be satisfied.
In the case of a large number of requirements in interconnections and crossovers, to achieve a satisfactory performance, the board must be expanded to more than two layers, so a multilayer PCB board is manufactured.
Payment & Shipping Terms:
|Max Board Size:||600 Mm X 1200 Mm||Base Material For PCB:||FR4, CEM-1, TACONIC, Aluminium, High Tg Material, High Frequence ROGERS ,TEFLON, ARLON, Halogen-free Material|
|Rang Of Finish Baords Thickness:||0.21-7.0mm||Minimum Line Width:||3mil (0.075mm)|
|Finishing Treatment:||HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, Etc.||Thickness Of Copper:||0.5-14oz (18-490um)|
|E-Testing:||100% E-Testing (High Voltage Testing); Flying Probe Testing||Layers:||6Layers|
|Material:||FR4||Soldmask:||Green / Red / Black|
SMT FR4 PCBA Design,
2 Layers PCBA Design,
Green Soldermask PCB Assembly Service
SMT FR4 2 Layers PCBA Design surface treatment Green Soldermask
OEM ODM service offer gsm security PCB design/electronic chart design developing
1. Description Of PCB Assembly Service
PCB Assembly is 4 layer it is used for security equipment application. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.
2. Specification Of PCB Assembly Service
|2||Material||FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum|
|4||Max.finished board side||500mm*500mm|
|5||Min.drilled hole size||0.25mm|
|8||Surface finish/treatment||HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating|
|10||Solder mask color||green/black/white/red/blue/yellow|
|11||Inner packing||Vacuum packing, Plastic bag|
|12||Outer packing||Standard carton packing|
|13||Hole tolerance||PTH:±0.076, NTPH:±0.05|
|14||Certificate||UL, ISO9001, ISO14001, ROHS, CQC|
|15||Profiling Punching||Routing, V-CUT, Beveling|
|16||Assembly Service||Providing OEM service to all sorts of printed circuit board assembly|
3. Products Application:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
9, Smart Home
10, Industrial Automation
11, Medical Devices
12, New Energy
And so on
4. Advantage Of PCB Assembly Service
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
6. OEM/ODM/EMS Services For PCBA:
· PCBA, PCB Board assembly: SMT & PTH & BGA
· PCBA and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
· Custom clearance for material importing and product exporting
Q1: Are you a factory or trading company?
-----We are a factory,Our company mainly sells PCB Assembly Service
Q2: Do you accept sample order?
------Yes, we can accept sample order.
Q3: What's your warranty policy?
-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.
Q4: What's your payment terms?
------We accept T/T in advance, paypal, or alipay account.
Q5:What's the lead time for mass order?
------Normally, it takes about 20-35 days, depends on the order quantity.
Contact Person: Mrs. Helen Jiang
