PCB board for LED means PCB for LED light.
PCB board for LED usually is mainly Aluminum and FR-4 material. Mainly used for panel light, wallwasher light, emergency light, LED Tube, dashboard background light, high bay light, flood light or project lamp, etc.
The main purpose of using an aluminum substrate is that it has good heat dissipation. Because of the large heat generation of high-power LEDs, most of the aluminum substrates are used for the production of LED lighting fixtures. FR-4 fiberglass circuit board is a traditional electronic product circuit board. It has a wide range of applications due to its good insulation, corrosion resistance, pressure resistance and multi-layer printing.
The product quality of the LED aluminum substrate is mainly considered to be the material type, hardness, surface and thickness of the aluminum material, and it is also necessary to select a suitable model size according to the heat generation amount of the product. FR-4 glass fiber circuit board is a relatively mature product, and many of the LED display screens are made of FR-4 glass fiber circuit board.
Product Details:
Payment & Shipping Terms:
|
| Layers: | 2 | Material: | FR-4 |
|---|---|---|---|
| Board Thickness: | 1.6mm | Soldmask & Silkscreen: | Green & White |
| High Light: | OEM Computer Motherboard PCB,Multilayer Rigid Printed Board,14oz Rigid Printed Board |
||

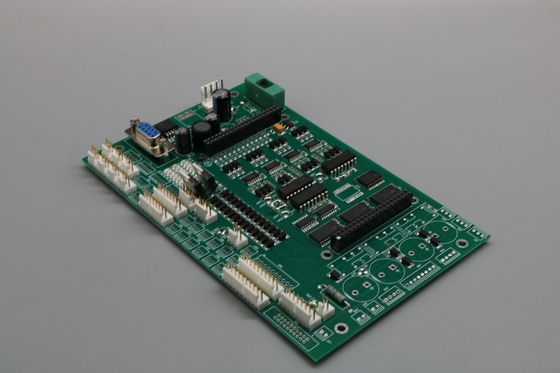

OEM Computer Motherboard PCB Multilayer Rigid Printed Board 0.5-14oz,pcb factory. PCB Board For LED
Detail Specifications:
| Layers | 2 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | ENIG |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What KAZ Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity | Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
SMT Capacity
LED PCB Board Creation Process Information
Circuit Design
Determine the power requirements of the complete LED circuit, including maximum current and voltage
Consider using a microcontroller or driver IC for controlling LED brightness and effects
Integrate any necessary power conditioning or protection circuitry
pcb layout
Arrange components to minimize trace length and optimize thermal dissipation
Leave sufficient clearance between high-voltage/high-current traces and low-voltage/low-current traces
Plan for mounting holes, mounting hardware, and any mechanical integration
Design
Use proper trace width and spacing to handle expected current loading
Includes copper pours or planes for grounding and distribution
Add test points to facilitate troubleshooting and measurement
Consider adding screen marks to identify components
Preparation for manufacturing
Detailed assembly instructions provided, including component placement and orientation
Specify any special manufacturing requirements such as HASL, ENIG or Immersion Silver finishes
Includes precise BOM with part number, quantity and source
Manufacturing
and PCB Manufacturers work together closely to ensure accurate manufacturing and quality control
Discuss advanced feature options such as multi-layer boards, blind/buried vias or impedance control
Assembling and testing
Follow the assembly instructions carefully to avoid any problems during the soldering process
Perform comprehensive testing, including functional verification, current/voltage measurements and thermal analysis
Consider programming a microcontroller or driver IC to achieve advanced LED control and effects
end product
Integrate LED PCB boards into end products such as lighting fixtures, displays or other applications
Design and fabricate any necessary mechanical housings, heat sinks or mounting hardware
Complete product documentation including user manuals, installation guides and warranty information
More photoes of High Quality FR-4 PCB ISO9001 UL RoHS TS16949 certified PCB manufacturer
