PCBs for industrial control products. Circuit board for controlling the normal operation of equipment in electrical equipment
1. Special or general-purpose circuit board for industrial control, the bottom circuit is completed, and IO is reserved. After buying the industrial control circuit board, the input and output ports reserved on the circuit board are connected to the user's own device, such as the motor. , solenoid valves, sensors to complete the functions they want to complete.
2. There are dedicated boards and general purpose boards. A dedicated circuit board is a board specially designed for a certain function, such as a temperature control circuit board. After buying it, the input port is connected to a thermocouple, and the output port is connected to a heating contactor or a solid state relay to control the heating device to complete temperature control, and flow. Control panel, motion control board, etc.
3. The universal control board, most of which can be programmed, after the user's own secondary development, completes a specific function, and has a wide range of uses. For example, plc is a general industrial control board. After the user writes the program and compiles the input, various functions can be completed. Digital input, analog input port, high-speed counter port, digital output port, analog output port, and some also have communication function.
Payment & Shipping Terms:
|Board Thickness:||1.6mm||Copper Thickness:||1oz|
|Surface Treatment:||HASL LF||Soldmask:||Green|
enig finish pcb,
double sided pcb board
Quality PCB Assembly for Industrial Control PLC one stop service manufacturer
|Surface Treatment||HASL LF|
|Soldmask & Silkscreen||Green & White|
|Quality Standard||IPC Class 2, 100% E-testing|
|Certificates||TS16949, ISO9001, UL, RoHS|
What KAZ can do:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
|Capacity||Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
|Min Line Width/Gap||4/4 mil (1mil=0.0254mm)|
|Material||FR-4, Aluminum, PI|
|Max PCB Size||600*1200mm|
|Min Hole Size||0.2mm (+/- 0.025)|
|Surface Treatment||HASL, ENIG, OSP|

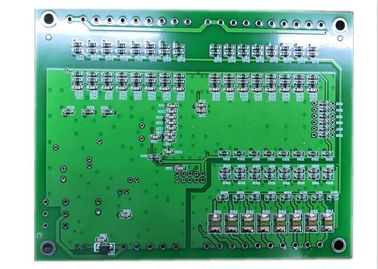

Photoes of this Quality PCB Assembly for Industrial Control PLC one stop service manufacturer
