Introduction:
Computer Circuit Board means that the PCB/PCBA is applied to the computer.
Characteristics:
1. Densification: The high density of PCB can be developed with the improvement of IC integration and installation technology.
2. High reliability (Hi-Rel): Through a series of inspections, tests and aging tests.
3. Designability: Can be achieved through standardization and standardization of design, with short time and high efficiency.
4. Productibility: Adopting modern management, can carry out standardization, scale (quantity) change, automation and so on production, guarantee product quality consistency.
5. Testability: A complete test method is established to test all kinds of test equipment and instruments to test and identify the PCB product's qualification.
6. Composability: Not only facilitate the standardized assembly of various components, but also enable the automatic large-scale production.
7. Maintainability: As PCB products and various components are standardized design and mass production, therefore, in case of system failure, the system can be replaced quickly.
Product Details:
Payment & Shipping Terms:
|
| Material: | FR-4 | Layers: | 2 Layers |
|---|---|---|---|
| Board Thickness: | 1.6mm | Copper: | 1oz |
| Surface: | HASL LF | Standard Testing: | IPC Class 2 |
| High Light: | electronic pcb board,motherboard pcb |
||
Computer Circuit Board electronics manufacturer Printed Circuit Board Assembly PCB Assembly service
Detail Specifications:
| Layers | 2 Layers |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | HASL LF |
| Soldmask & Silkscreen | Blue & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What KAZ Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity | Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
SMT Capacity
PCB (Printed Circuit Board) Assembly is the process of loading electronic components onto bare PCBs and connecting them via soldering. PCB Assembly services typically provide the following capabilities:
Component Procurement: The service provider sources the required electronic components, ensuring availability, correct specifications, and quality control.
PCB Preparation: The bare PCBs are cleaned, inspected, and prepared for the assembly process.
Component Placement: Depending on the complexity of the board, components are accurately placed on the PCB using automated pick and place machines or manual techniques.
Soldering: Components are soldered onto the PCB using through-hole or surface mount technology (SMT) soldering processes such as wave soldering, reflow soldering, or selective soldering.
Inspection and Testing: Assembled PCBs are visually inspected and electrically tested to ensure proper component placement and proper functioning.
Conformal Coating (Optional): A protective conformal coating can be applied to the assembled PCBs to enhance their environmental resistance and reliability.
Packaging and Shipping: The finished PCB assembly is carefully packaged and shipped to the customer.
PCB Assembly services cater to a wide range of industries, including electronics, automotive, aerospace, medical, and industrial automation. They can handle a wide range of board sizes, component types, and complexities, from simple single-layer boards to advanced multi-layer, high-density designs.
When choosing a PCB assembly service, consider factors such as its technical capabilities, quality control processes, turnaround time, pricing, and customer references. Many PCB assembly suppliers also offer additional services such as design support, prototyping, and post-assembly testing.

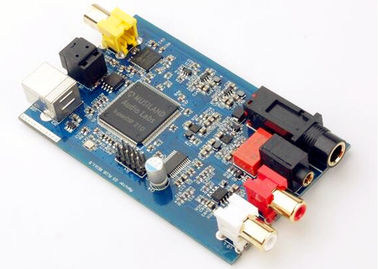

Photoes of this electronics manufacturer Router Printed Circuit Board Assembly
