1. Introduction for Automotive PCB
Automotive PCB: Printed Circuit Boards for Automotive products. With TS16949 certificated.
PCBs for the Automotive industry require high reliability, long life service, at a highly competitive rate. The sector consists of passenger vehicles, trucks, trailers, sub assemblies, and dealer support systems.
Amitron provides printed circuit boards that offer a wide range of materials, composites, and construction, that perform well in the rigors of the automotive world. We produce display PCBs, circuits for engines and various electronic components such as stereo systems.
High Temperature laminates, copper and aluminum substrates perform very well in harsh automotive applications. Amitron supplies a vast array of laminates with copper weights that are unrivaled in our industry. Differential copper plated is unique to Amitron. Twenty ounce copper on side one and one ounce copper on side two would be a typical configuration of differential copper. This technique offers signal application on one side and high power on the other. Amitron is ISO 9001-2008 certified.
2. Applications for Automotive PCB
Product Details:
Payment & Shipping Terms:
|
| Size: | As Per Gerber | Material: | FR-4/Aluminum/Copper |
|---|---|---|---|
| Layers: | 2layers | Board Thickness: | 1.6 Mm |
| Copper: | 1oz | Surface: | HASL |
| Soldmask: | Green | Silk Screen: | White |
| Standard Testing: | IPC Class 2 | Used For Product: | Automotive Foot-rest Board |
| High Light: | printed circuit board assembly,multilayer pcb |
||

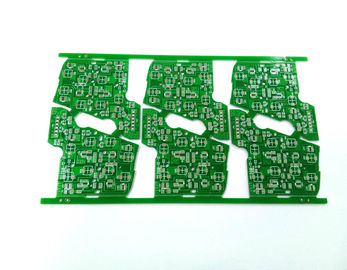

2Layers Automotive foot-rest board shengyi 1OZ Automotive PCB
Detail Specifications:
| Layers | 4Layers |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | HASL |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
2Layers Automotive foot-rest board shengyi 1OZ Automotive PCB
What KAZ Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity | Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
