Heavy Copper PCB

  • High Precision Heavy Copper PCB suppliers

Heavy Copper PCB



What is Heavy Copper PCB? Heavy Copper PCB is a printed circuit board (PCB) with a layer of copper foil bonded to its glass epoxy substrate. When the thickness of the copper foil is greater than or equal to 2 ounces (i.e. ≥2oz), it is called Heavy Copper PCB.



Copper performs the function of conducting electricity on the circuit board. Heavy Copper PCB has the characteristics of carrying large current, reducing thermal strain, and having good heat dissipation.



The application scenarios of Heavy Copper PCB are very wide. Here are some common application scenarios:



High-power electronic equipment: Heavy Copper PCB can withstand the current and heat of high-power electronic equipment, so it is widely used in power modules, motor controllers, UPS power supplies, solar inverters, electronic ignition systems, electric vehicle charging piles and other equipment.



Industrial control: In the field of industrial control, high-reliability, high-temperature-resistant, and corrosion-resistant PCBs are required to achieve stable circuit design and signal transmission. Heavy Copper PCB can meet these requirements, so it is widely used in the field of industrial control.



LED lighting: LED lighting requires the use of high-thermal-conductivity, high-reliability PCBs to achieve good heat dissipation and stable circuit design. Heavy Copper PCB can meet these requirements, so it is widely used in the field of LED lighting.



Aerospace: In the field of aerospace, high-reliability and high-corrosion-resistant PCBs are needed to achieve stable circuit design and signal transmission. Heavy Copper PCBs can meet these requirements, so they are widely used in the field of aerospace.



Automotive: In the automotive field, PCBs that can withstand high temperature, low temperature, corrosion and other environmental factors are needed to achieve stable circuit design and signal transmission. Heavy Copper PCBs can meet these requirements, so they are widely used in the automotive field.



Telecommunications: In the field of telecommunications, high-reliability and high-signal-integrity PCBs are needed to achieve stable circuit design and signal transmission. Heavy Copper PCBs can meet these requirements, so they are widely used in the field of telecommunications.



Heavy Copper PCBs are widely used in many fields due to their high current carrying capacity, excellent thermal stability, good heat dissipation, good signal integrity, high reliability and strong customizability.



In addition to the above application scenarios, Heavy Copper PCBs are also common in the following fields:



Medical devices: Medical devices require high-precision and high-stability design of circuits to ensure the reliability and safety of the equipment. Heavy Copper PCBs can meet these requirements, so they are widely used in medical equipment. For example, medical equipment such as pH meters, blood sugar level measuring equipment, and electrocardiographs may use Heavy Copper PCBs.



Industrial Automation: In the field of industrial automation, high-reliability and high-corrosion-resistant PCBs are required to ensure the stable operation and production efficiency of the equipment. Heavy Copper PCBs can meet these requirements, so they are widely used in the field of industrial automation. For example, Heavy Copper PCBs may be used in automation equipment such as sensors, actuators, and PLCs.



Military Electronics: In the field of military electronics, high-reliability and high-corrosion-resistant PCBs are required to ensure the reliability and safety of the equipment. Heavy Copper PCBs can meet these requirements, so they are widely used in the field of military electronics. For example, Heavy Copper PCBs may be used in military equipment such as military radars, electronic warfare systems, and missile guidance.



Automotive Electronics: In the field of automotive electronics, PCBs that can withstand various environmental factors such as high temperature, low temperature, and corrosion are required to ensure the reliability and safety of the car. Heavy Copper PCBs can meet these requirements, so they are widely used in the field of automotive electronics. For example, Heavy Copper PCBs may be used in automotive electronic devices such as car control modules, engine control systems, and airbags.

Multilayer PCB Board FR-4 HASL Lead Free 1.6mm Thickness

Multilayer PCB Board FR-4 HASL Lead Free 1.6mm Thickness
Multilayer PCB Board FR-4 HASL Lead Free 1.6mm Thickness Multilayer PCB Board FR-4 HASL Lead Free 1.6mm Thickness

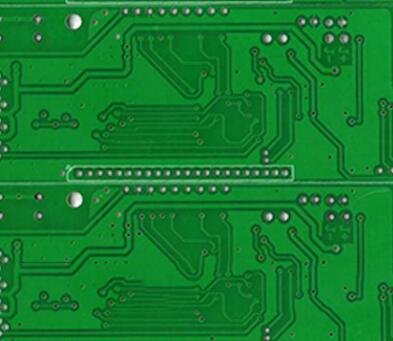

Large Image :  Multilayer PCB Board FR-4 HASL Lead Free 1.6mm Thickness

Product Details:

Place of Origin: China
Brand Name: KAZ Circuit
Certification: ISO9001, TS16949, UL, RoHS
Model Number: PCB-S-030

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD/pc
Packaging Details: Vacuum package
Delivery Time: 7~8 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000 Square Meters / Month
Detailed Product Description
Material: FR-4 KB6160 Layers: 2 Layers
Board Thickness: 1.6mm Copper: 1oz
Surface: HASL Standard Testing: IPC Class 2
Highlight:

printed circuit board pcb

,

power supply circuit board

Multilayer PCB Board FR-4 HASL Lead Free 1.6mm Thickness





Detail Specifications:





 Layers  2
 Material  FR-4 KB6160
 Board Thickness  1.6mm
 Copper Thickness  1oz
 Surface Treatment  HASL
 Soldmask & Silkscreen  Green & White
 Quality Standard  IPC Class 2, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS






What KAZ Circuit can do for you:



  • PCB & PCBA Design
  • PCB manufacturing (prototype, small to medium, mass production)
  • Components Sourcing
  • PCB Assembly/SMT/DIP




To get a full quotation of the PCB/PCBA, pls provide the information as below:



  • Gerber File, with detail specification of the PCB
  • BOM List (Better with excel fomart)
  • Photoes of the PCBA (If you have done this PCBA before)




Company Informaiton:



KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!





Manufacturer Capacity:




Capacity Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
Min Line Width/Gap 4/4 mil (1mil=0.0254mm)
Board Thickness 0.3~4.0mm
Layers 1~20 layers
Material FR-4, Aluminum, PI
Copper Thickness 0.5~4oz
Material Tg Tg140~Tg170
Max PCB Size 600*1200mm
Min Hole Size 0.2mm (+/- 0.025)
