Electronic Circuit Board Assembly

  • High Precision Electronic Circuit Board Assembly suppliers

1. Introduction



The assembly of the printing plate is based on the requirements of the design documents and process specifications, and the electronic components are inserted into the printed circuit board according to a certain regularity, and the assembly process is fixed by fasteners or soldering.





2.Specification



Type SMT
Base material Copper
Flame retardant properties VO
Item number PCB Manufacturer
Brand PCBA circuit board electronic component assembly
Layer 2
Customized Yes
Processing technology Electrolytic foil







3. Application



PCBs can be single-sided (one copper layer), double-sided (two copper layers on both sides of one substrate layer), or multi-layer (outer and inner layers of copper, alternating with layers of substrate). Multi-layer PCBs allow for much higher component density, because circuit traces on the inner layers would otherwise take up surface space between components. The rise in popularity of multilayer PCBs with more than two, and especially with more than four, copper planes was concurrent with the adoption of surface mount technology. However, multilayer PCBs make repair, analysis, and field modification of circuits much more difficult and usually impractical.

PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly

PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly
PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly

Large Image :  PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly

Product Details:

Place of Origin: China
Brand Name: KAZ
Certification: UL/ROHS/ ISO9001
Model Number: KAZA-0198

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Packaging Details: P/P
Delivery Time: 10 ~ 20 Work days
Payment Terms: Western Union, T/T, L/C, D/P, MoneyGram
Supply Ability: 100000 pieces
Detailed Product Description
Product Name: PCBA Place Of Origin: Guangdong , China
Min. Line Spacing: 3 Mil (0.075 Mm) Min. Hole Size: 3mil (0.075mm)
Brand Name: OEM Components Purchasing: OK
SMT DIP Assembly: Support Type: SMT Assembly
High Light:

electronic pcb assembly

,

pcb board assembly

PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly







1. Features



1. One Stop OEM Service, Made in Shenzhen of China

2. Manufactured by Gerber File and BOM List from Customer

3. FR4 Material, Meet 94V0 standard

4. SMT, DIP technology suport

5. Lead Free HASL, Environmental Protection

6. UL, CE, ROHS Compliant

7. Shipping By DHL,UPS, TNT, EMS or Customer requirement









2. PCBA Technical capability





SMT Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
Press-fit Press range:0-50KN
Max. PCB size:800X600mm
Testing ICT,Probe flying,burn-in,function test,temperature cycling





Electronic circuit board assembly is the manufacturing process of assembling and interconnecting electronic components on printed circuit boards (PCBs) to create functional electronic devices.



The key steps in the electronic circuit board assembly process are:

PCB Manufacture:
PCBs are manufactured by layering and etching copper traces onto a non-conductive substrate such as fiberglass or other dielectric material.
PCB designs, including copper traces, component placement, and other features, are often created using computer-aided design (CAD) software.


Component purchasing:
Necessary electronic components, such as resistors, capacitors, integrated circuits (ICs), and connectors, are obtained from suppliers.
Select components carefully based on their electrical characteristics, physical size, and compatibility with the PCB design.


Element placement:
Electronic components are placed on the PCB using either manual or automated techniques such as pick and place machines.
Component placement is guided by the PCB design to ensure correct orientation and alignment on the board.


Soldering:
Components are fixed to the PCB and electrically connected through a soldering process.
This can be done using various methods, such as wave soldering, reflow soldering, or selective soldering.
The solder forms an electrically conductive and mechanical connection between the component leads and the PCB's copper pads.


Inspection and Testing:
The assembled PCB goes through visual inspection and various testing procedures to ensure the quality and functionality of the circuit.
These tests may include electrical testing, functional testing, environmental testing and reliability testing.
Any defects or issues discovered during the inspection and testing phase will be addressed before final assembly.


Cleaning and conformal coating:
After the soldering process, the PCB can be cleaned to remove any remaining flux or contaminants.
Depending on the application, a conformal coating may be applied to the PCB to provide environmental protection and improve reliability.


Final Assembly and Packaging:
Tested and inspected PCBs can be integrated into larger systems or enclosures, such as chassis, housings or other mechanical components.
The assembled products are then packaged and prepared for shipment or further distribution.


Electronic circuit board assembly is a critical process in the manufacturing of electronic devices, ensuring reliable and efficient operation of the final product. It combines technical expertise, precision manufacturing and quality control measures to provide high quality electronic systems.

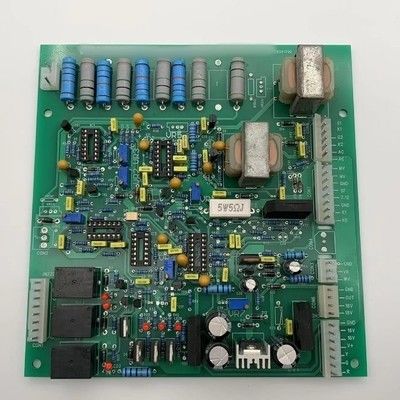

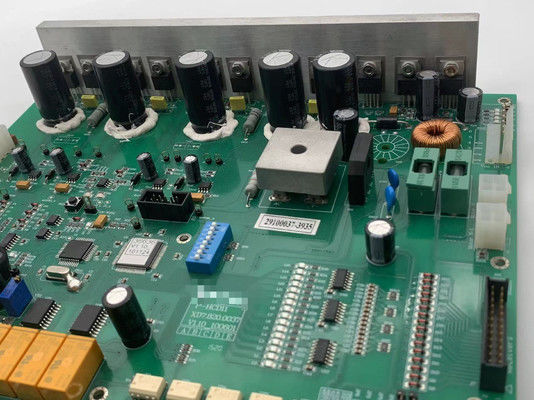

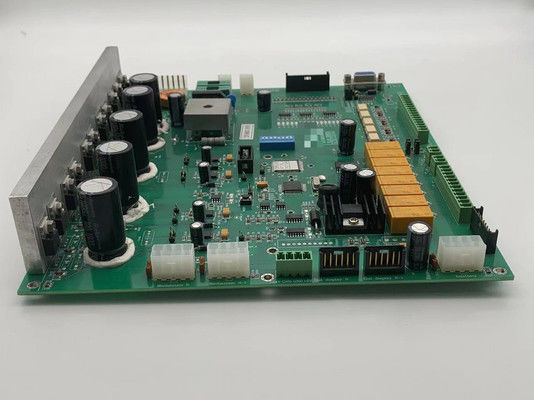

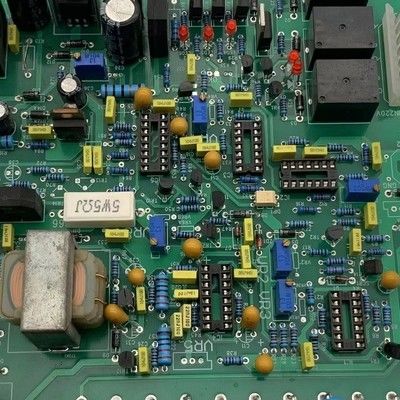

2. PCBA Pictures

PCB Manufacturerr Energy Saving Electronic Printed Circuit Board AssemblyPCB Manufacturerr Energy Saving Electronic Printed Circuit Board AssemblyPCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly







PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly



PCB Manufacturerr Energy Saving Electronic Printed Circuit Board Assembly
