Industrial Control Board

  • High Precision Industrial Control Board suppliers

PCBs for industrial control productsCircuit board for controlling the normal operation of equipment in electrical equipment



1. Special or general-purpose circuit board for industrial control, the bottom circuit is completed, and IO is reserved. After buying the industrial control circuit board, the input and output ports reserved on the circuit board are connected to the user's own device, such as the motor. , solenoid valves, sensors to complete the functions they want to complete.


2. There are dedicated boards and general purpose boards. A dedicated circuit board is a board specially designed for a certain function, such as a temperature control circuit board. After buying it, the input port is connected to a thermocouple, and the output port is connected to a heating contactor or a solid state relay to control the heating device to complete temperature control, and flow. Control panel, motion control board, etc.


3. The universal control board, most of which can be programmed, after the user's own secondary development, completes a specific function, and has a wide range of uses. For example, plc is a general industrial control board. After the user writes the program and compiles the input, various functions can be completed. Digital input, analog input port, high-speed counter port, digital output port, analog output port, and some also have communication function.

ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board

ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board
ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board

Large Image :  ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board

Product Details:

Place of Origin: China
Brand Name: OEM ODM
Certification: UL,ROHS, REACH,TS16949
Model Number: PCBA-J-009

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be inquired
Delivery Time: 15-18working days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Material: FR4 TG170 Categary: Industry PCB
Layers: 4Layers Board Thickness: 1.6mm
Copper: 1-6OZ Surface: ENIG
Soldermask: White/Green/black/red Standard: IPC Class 2
High Light:

enig finish pcb

,

double sided pcb board



4layer FR4 1oz ENIG TG170 Industrial PCB for Escalator control board
Detail Specifications:



Layers 4
Material FR-4
Board Thickness 1.6mm
Copper Thickness 1oz
Surface Treatment ENIG
Soldmask & Silkscreen Green & White
Quality Standard IPC Class 2, 100% E-testing
Certificates TS16949, ISO9001, UL, RoHS

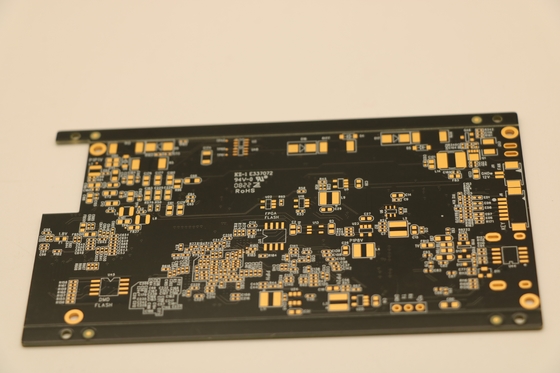

Photoes of this 4layer FR4 1oz ENIG TG170 Industrial PCB for Escalator control board



ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control BoardENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control BoardENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control BoardENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control BoardENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control BoardENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board


What KAZ Circuit can do for you:

  • PCB manufacturing (prototype, small to medium, mass production)
  • Components Sourcing
  • PCB Assembly/SMT/DIP


To get a full quotation of the PCB/PCBA, pls provide the information as below:

  • Gerber File, with detail specification of the PCB
  • BOM List (Better with excel fomart)
  • Photoes of the PCBA (If you have done this PCBA before)


Company Informaiton:
KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:


Capacity Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
Min Line Width/Gap 4/4 mil (1mil=0.0254mm)
Board Thickness 0.3~4.0mm
Layers 1~20 layers
Material FR-4, Aluminum, PI
Copper Thickness 0.5~4oz
Material Tg Tg140~Tg170
Max PCB Size 600*1200mm
Min Hole Size 0.2mm (+/- 0.025)
Surface Treatment HASL, ENIG, OSP
