Electronic Circuit Board Assembly with FR4 Multilayer Blue Soldmask and 1oz Copper for PCB Manufacturing and SMT DIP Technology Support

Electronic Circuit Board Assembly with FR4 Multilayer Blue Soldmask and 1oz Copper for PCB Manufacturing and SMT DIP Technology Support

Brand Name:	KAZ
Model Number:	KAZA-080
MOQ:	1 Unit
Payment Terms:	Western Union,T/T,L/C,D/P,MoneyGram
Supply Ability:	100000 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL/ROHS/ ISO9001

Product Name:

PCBA

Place Of Origin:

Guangdong , China

Min. Line Spacing:

3 Mil (0.075 Mm)

Min. Hole Size:

3mil (0.075mm)

Brand Name:

OEM

Components Purchasing:

SMT DIP Assembly:

Support

Type:

SMT Assembly

Surfacefinish:

HASL (Hot Air Solder Leveling)

Production Name:

PCBA

Minimum Hole Diameter:

0.10 Mm

Base Material:

FR-4,CEM-3,Aluminum,CEM-1 OR FR-4,alum

Testing:

Support

Typicalapplications:

Consumer Electronics, Automotive, Industrial Control

Rohscompliance:

Yes

Surface Finish:

HASL

Product Type:

PCBA

Pcb Assembly Method:

Mixed,BGA,SMT,Through-hole

Smt:

Support

Minimum Line Space:

3mil (0.075mm)

Material:

FR4 (Flame Retardant 4) PCB

Silkscreen:

White

Layer Count:

2 ` 20 Layers

Packaging Details:

P/P

Supply Ability:

100000 pieces

Highlight:

Black Soldmask Prototype PCB

FR4 Electronics Circuit Board

ENIG Surface Prototype PCB

Product Description

FR4 Multilayer Electronic Circuit Board Assembly Blue Soldmask 1oz Copper

PCB Electronic Circuit Board Assembly SMT

1. Features

One Stop OEM Service, Made in Shenzhen of China
Manufactured by Gerber File and BOM List from Customer
FR4 Material, Meet 94V0 standard
SMT, DIP technology suport
Lead Free HASL, Environmental Protection
UL, CE, ROHS Compliant
Shipping By DHL,UPS, TNT, EMS or Customer requirement

2. PCBA Technical capability

SMT Manufacturing Capability
Item		Manufacturing Capability in process	Manufacturing Method
Production size(Min/Max)		5050mm / 500500mm
Production board thickness		0.2 ～ 4mm
Printing solder paste	Support method		Magnetism fixture, vacuo platform
	Clamping method		Sticking up by vacuo, clamping on both sides ,flexible clamping with sheet, flexible clamping with thick board
	Cleaning Method of printing solder paste		Dry method+ wetting method+ Vacuo method
	Accuracy of printing	±0.025mm
SPI	Repeated accuracy of volume	<1% at 3σ
Mounting component	Components size	0603(Option) L75mm Connector
	Pitch	0.15mm
	Repeated accuracy	±0.01mm
AOI	FOV size	61*45mm
AOI	Test speed	9150mm²/Sec
3D X-ray	Shootingangle	0-45

3 . Specification Of PCB Assembly Service

1	Layer	1-30 layer
2	Material	FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
3	Board thickness	0.2mm-7mm
4	Max.finished board side	500mm*500mm
5	Min.drilled hole size	0.25mm
6	Min.line width	0.075mm(3mil)
7	Min.line spaceing	0.075mm(3mil)
8	Surface finish/treatment	HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing, Plastic bag
12	Outer packing	Standard carton packing
13	Hole tolerance	PTH:±0.076, NTPH:±0.05
14	Certificate	UL, ISO9001, ISO14001, ROHS, CQC
15	Profiling Punching	Routing, V-CUT, Beveling
16	Assembly Service	Providing OEM service to all sorts of printed circuit board assembly

4. PCBA Pictures

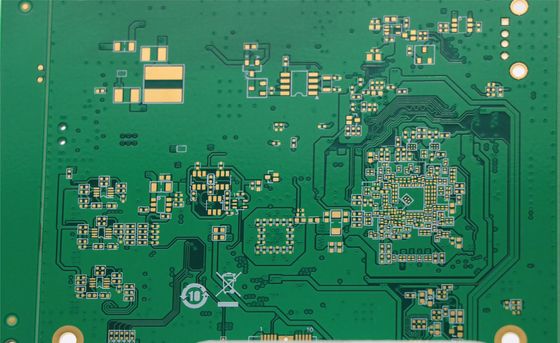

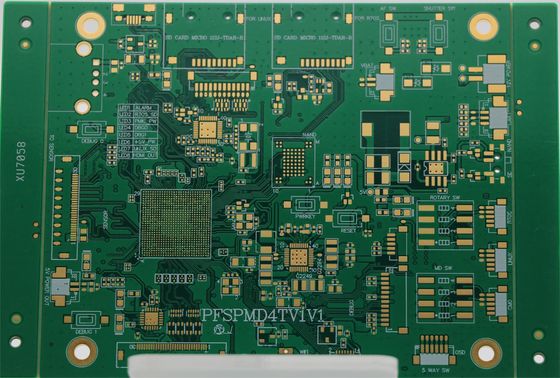

Electronic Circuit Board Assembly with FR4 Multilayer Blue Soldmask and 1oz Copper for PCB Manufacturing and SMT DIP Technology Support 0
