Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards

PCB Certifications
Good quality SMT PCB Assembly
Good quality SMT PCB Assembly
Customer Reviews
We are very satisfied wtih you guys. Quick response, professional engineering team, fast delivery, good quality... all are nice. I am sure we can have much more business in the future.

—— Kevin Kinder

End customers were satisfied with the quality, so did I for the past years. Have recommended you to my other friends that have needs in PCBA.

—— Mariusz Sharp

Thanks for help my small business grows up step by step,for prototypes to small, medium & large orders, you will be my first choice for PCB anytime.

—— Adam Burridge

Good price, fast lead and delivery time, shipping cost is quite good! Our company is satisfied with your good service for the last 4 years!

—— Luboš Herceghová

Hello good afternoon. I received the 80 pcs PCB. Thank you. I like so much that. That is good qualtiy, nice color. Pls take care of the remaining 80 pcs PCB. Thank you. Have a nice day. :)

—— Alice Yoon

I'm Online Chat Now

PCBA Design

  • High Precision PCBA Design suppliers

The R&D for electronic products, such as CB design, program design, PSI simulation, EMC design, ID design, structural design, etc.



The design of the printed circuit board is based on the circuit schematic diagram to achieve the functions required by the circuit designer. The design of the printed circuit board mainly refers to the layout design, and the layout of the external connection needs to be considered. Optimized layout of internal electronic components. Optimized layout of metal wiring and vias. Electromagnetic protection. Various factors such as heat dissipation. Excellent layout design can save production costs and achieve good circuit performance and heat dissipation. Simple layout designs can be implemented manually, and complex layout designs need to be implemented with computer-aided design (CAD).

Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards

Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards

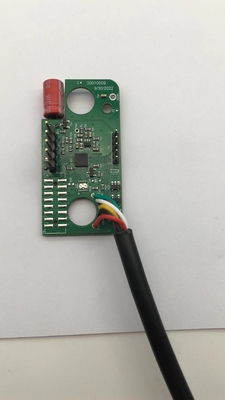

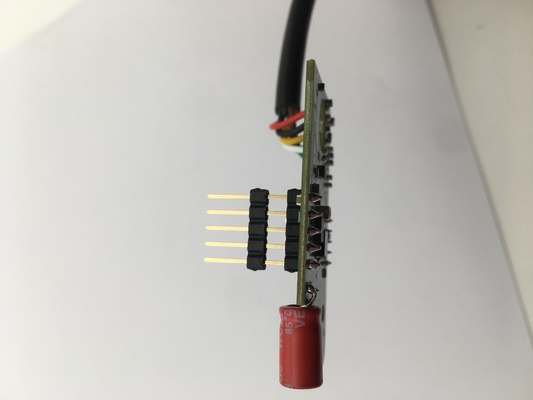

Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards

Large Image :  Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards

Product Details:

Place of Origin: China
Brand Name: KAZ
Certification: UL&ROHS
Model Number: KAZA-0038

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 0.1-20 USD / Unit
Packaging Details: vacuum package
Delivery Time: 5-30
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 2000 m2 / Month
Detailed Product Description
Layer Count: 2 ` 30 Layers Max Board Size: 600 Mm X 1200 Mm
Base Material For PCB: FR4, CEM-1, TACONIC, Aluminium, High Tg Material, High Frequence ROGERS ,TEFLON, ARLON, Halogen-free Material Rang Of Finish Baords Thickness: 0.21-7.0mm
Minimum Line Width: 3mil (0.075mm) Minimum Line Space: 3mil (0.075mm)
Minimum Hole Diameter: 0.10 Mm Finishing Treatment: HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, Etc.
Thickness Of Copper: 0.5-14oz (18-490um) E-Testing: 100% E-Testing (High Voltage Testing); Flying Probe Testing
Layers: 6Layers Copper: 2OZ
High Light:

Customized FR4 PCBA Design

,

Industrial Control PCBA Design

,

FR4 Customized PCB Boards

Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards



OEM ODM service offer gsm security PCB design/electronic chart design developing



1. Description Of PCB Assembly Service

PCB Assembly is 4 layer it is used for security equipment application. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.



2. Specification Of PCB Assembly Service

1 Layer 1-30 layer
2 Material FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
3 Board thickness 0.2mm-7mm
4 Max.finished board side 500mm*500mm
5 Min.drilled hole size 0.25mm
6 Min.line width 0.075mm(3mil)
7 Min.line spaceing 0.075mm(3mil)
8 Surface finish/treatment HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
9 Copper thickness 0.5-4.0oz
10 Solder mask color green/black/white/red/blue/yellow
11 Inner packing Vacuum packing, Plastic bag
12 Outer packing Standard carton packing
13 Hole tolerance PTH:±0.076, NTPH:±0.05
14 Certificate UL, ISO9001, ISO14001, ROHS, CQC
15 Profiling Punching Routing, V-CUT, Beveling
16 Assembly Service Providing OEM service to all sorts of printed circuit board assembly





3. Products Application:

1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense

8, Automotive

9, Smart Home

10, Industrial Automation

11, Medical Devices

12, New Energy

And so on



4. Advantage Of PCB Assembly Service
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test



5. Picture



Customized FR4 PCBA Design Industrial Control 2OZ Copper PCB BoardsCustomized FR4 PCBA Design Industrial Control 2OZ Copper PCB BoardsCustomized FR4 PCBA Design Industrial Control 2OZ Copper PCB Boards



6. OEM/ODM/EMS Services For PCBA:

· PCBA, PCB Board assembly: SMT & PTH & BGA

· PCBA and enclosure design

· Components sourcing and purchasing

· Quick prototyping

· Plastic injection molding

· Metal sheet stamping

· Final assembly

· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

· Custom clearance for material importing and product exporting



FAQ

Q1: Are you a factory or trading company?

-----We are a factory,Our company mainly sells PCB Assembly Service

Q2: Do you accept sample order?

------Yes, we can accept sample order.

Q3: What's your warranty policy?

-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.

Q4: What's your payment terms?

------We accept T/T in advance, paypal, or alipay account.

Q5:What's the lead time for mass order?

------Normally, it takes about 20-35 days, depends on the order quantity.



Contact Details
Shenzhen KAZ Circuit Co., Ltd

Contact Person: Mrs. Helen Jiang

Tel: 86-18118756023

Fax: 86-755-85258059

Send your inquiry directly to us (0 / 3000)
