| Brand Name: | KAZ Circuit |
| Model Number: | PCB-S-2641944672 |
| MOQ: | 1 pc |
| Price: | USD/pc |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
Detail Specifications for this FR4 PCB prototype electronic printed circuit board fabrication
| Layers | 2 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1/1 oz |
| Surface Treatment | ENIG 1u" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
FR-4 is a code name for a flame-resistant material grade. It means a material specification that the resin material must be self-extinguishing after being burned. It is not a material name, but a material grade, so the current general circuit There are many types of FR-4 grades used in the panels, but most are composites made of so-called four-function epoxy plus fillers and fiberglass.
KAZ provide the service as below:
In order to get a full quotation of the PCB/PCBA, pls provide below information:

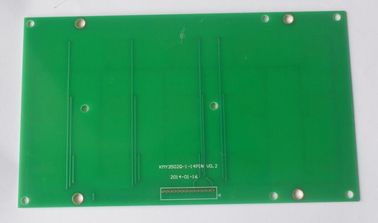

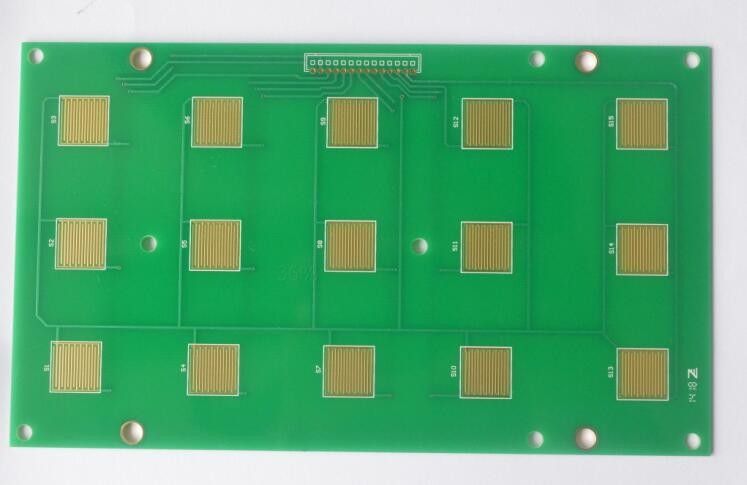

More detail photoes for this FR4 PCB prototype electronic printed circuit board fabrication
