SMT Multilayer quick turn printed electronic circuit Green Soldermask Lead Free 2oz Fr4 Material smartphone car

SMT Multilayer quick turn printed electronic circuit Green Soldermask Lead Free 2oz Fr4 Material smartphone car

Brand Name:	KAZ
Model Number:	KAZA-080
MOQ:	1 Unit
Payment Terms:	Western Union,T/T,L/C,D/P,MoneyGram
Supply Ability:	100000 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL/ROHS/ ISO9001

Product Name:

PCBA

Place Of Origin:

Guangdong , China

Min. Line Spacing:

3 Mil (0.075 Mm)

Min. Hole Size:

3mil (0.075mm)

Brand Name:

OEM

Components Purchasing:

SMT DIP Assembly:

Support

Type:

SMT Assembly

Silkscreen:

White

Soldmask:

Red/black/green

Packaging Details:

P/P

Supply Ability:

100000 pieces

Highlight:

Support SMT Multilayer PCB Board

Green Soldermask Multilayer PCB Board

Lead Free Multilayer PCB Board

Product Description

FR4 Material 2oz 4 Layers PCB BGA Assembly HASL ENIG Surface Treatment

PCB Electronic Circuit Board Assembly SMT

1. Features

One Stop OEM Service, Made in Shenzhen of China
Manufactured by Gerber File and BOM List from Customer
FR4 Material, Meet 94V0 standard
SMT, DIP technology suport
Lead Free HASL, Environmental Protection
UL, CE, ROHS Compliant
Shipping By DHL,UPS, TNT, EMS or Customer requirement

2. PCBA Technical capability

SMT	Position accuracy:20 um
	Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
	Max. component height::25mm
	Max. PCB size:680×500mm
	Min. PCB size:no limited
	PCB thickness:0.3 to 6mm
	PCB weight:3KG
Wave-Solder	Max. PCB width:450mm
	Min. PCB width: no limited
	Component height:Top 120mm/Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep
	Metal material:Copper , Aluminum
	Surface Finish:plating Au, plating sliver , plating Sn
	Air bladder rate:less than20%
Press-fit	Press range:0-50KN
Press-fit	Max. PCB size:800X600mm
Testing	ICT,Probe flying,burn-in,function test,temperature cycling

3 . Specification Of PCB Assembly Service

1	Layer	1-30 layer
2	Material	FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
3	Board thickness	0.2mm-7mm
4	Max.finished board side	500mm*500mm
5	Min.drilled hole size	0.25mm
6	Min.line width	0.075mm(3mil)
7	Min.line spaceing	0.075mm(3mil)
8	Surface finish/treatment	HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing, Plastic bag
12	Outer packing	Standard carton packing
13	Hole tolerance	PTH:±0.076, NTPH:±0.05
14	Certificate	UL, ISO9001, ISO14001, ROHS, CQC
15	Profiling Punching	Routing, V-CUT, Beveling
16	Assembly Service	Providing OEM service to all sorts of printed circuit board assembly

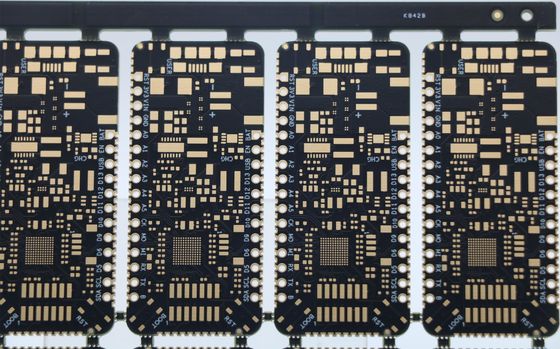

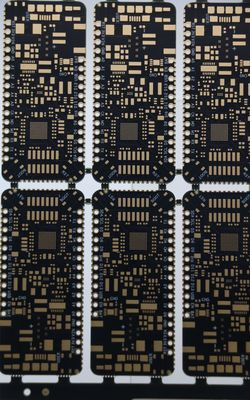

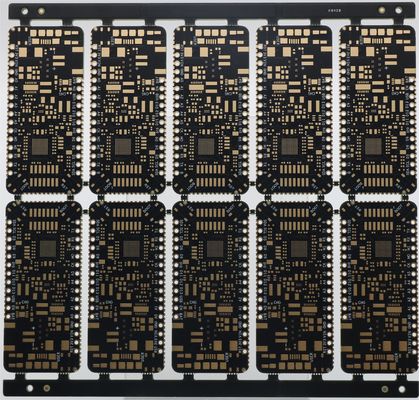

4. PCBA Pictures

SMT Multilayer quick turn printed electronic circuit Green Soldermask Lead Free 2oz<img style= Products Application:

Telecom Communication
Consumer Electronics
Security monitor
Vehicle Electronices
Smart Home
Industrial controls
Military & Defense
Automotive
Smart Home
Industrial Automation
Medical Devices
New Energy
And so on

FAQ

Q1: Are you a factory or trading company?

-----We are a factory,Our company mainly sells PCB Assembly Service

Q2: Do you accept sample order?

------Yes, we can accept sample order.

Q3: What's your warranty policy?

-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.

Q4: What's your payment terms?

------We accept T/T in advance, paypal, or alibaba trade assurance.

Q5:What's the lead time for mass order?

------Normally, it takes about 20-35 days, depends on the order quantity.
