Quick Turn PCB Assembly Service with 1oz Copper Thickness

China Quick Turn PCB Assembly Service provider with factory price

Detail Specifications:



What KAZ Circuit can do for you:


• PCB & PCBA Design
• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:


• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:
KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!

Manufacturer Capacity:




SMT Capacity


Quick turn PCB assembly refers to a fast and expedited process of manufacturing and assembling printed circuit boards (PCBs) with a significantly reduced turnaround time. It is often used when there is a need for rapid prototyping or when quick production is required to meet tight deadlines.

The quick turn PCB assembly process generally follows the same steps as regular PCB assembly, but with a focus on speed and efficiency. Here are some key aspects of quick turn PCB assembly:

Design for Manufacturability (DFM): When designing the PCB, it is crucial to consider manufacturability factors from the beginning. By adhering to design guidelines and best practices, you can minimize the risk of errors, delays, and rework during assembly.

Component Availability: Quick turn PCB assembly relies on readily available components. It is important to select components that are in stock and can be rapidly sourced from suppliers or distributors. This ensures that there are no delays due to component shortages or long lead times.

Expedited PCB Fabrication: The PCB fabrication process is expedited by using fast-turnaround fabrication services. These services specialize in quick PCB production and can deliver the fabricated PCBs in a short amount of time, often within a few days or even hours.

Streamlined Component Procurement: Quick turn PCB assembly involves efficient component procurement. This may involve working closely with component suppliers, distributors, or using electronic component sourcing platforms to quickly source the required components.

Agile Assembly Process: The assembly process is optimized for speed and efficiency. Automated pick-and-place machines are typically used to quickly and accurately place components on the PCB. Soldering processes such as reflow soldering are employed to ensure rapid and reliable solder joint formation.

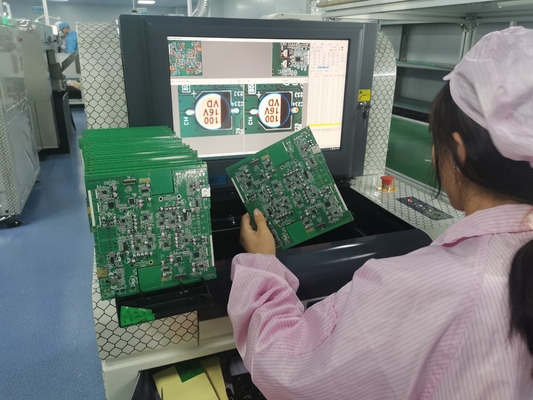

Expedited Inspection and Testing: Inspection and testing are performed promptly to identify any assembly issues or defects. Automated optical inspection (AOI) and in-circuit testing (ICT) are often employed to quickly detect potential problems and ensure the functionality and quality of the assembled PCBs.

Collaborative Communication: Effective communication between the PCB manufacturer and the customer is crucial in quick turn PCB assembly. Clear and concise communication regarding design specifications, deadlines, and any specific requirements helps ensure a smooth and expedited process.

It's important to note that while quick turn PCB assembly can significantly reduce the turnaround time, it may come at a higher cost compared to standard PCB assembly due to the expedited nature of the process and additional resources required to meet the fast delivery requirements.

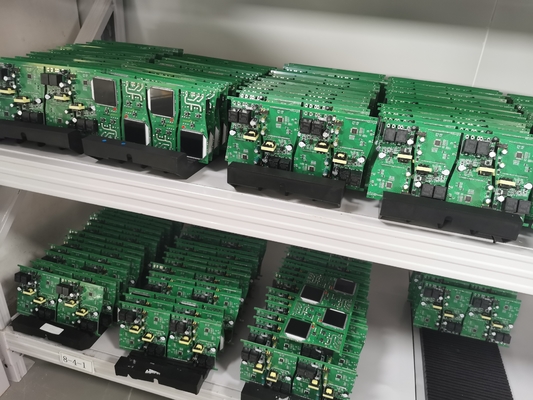

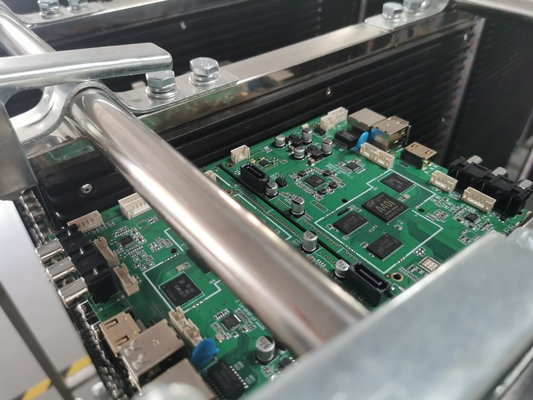

Photoes of Electronic Manufacturing Service Quick Turn PCB Assembly Service
